I had previously installed the software on my Mac and was successful in using bluetooth to communicate with the Bean from my Mac. I used the simple Blink code and was able to change the blinking patterns of the onboard LED. The only trouble I rant into was that my Arduino version was a bit outdated, but after an update, all worked fine.
But I ran into erratic behavior when trying to control the BEAN using Bean Loader for IOS.
After a little digging on line, I found I was not the only one with erratic issues.
Decided not to worry so much about that for now and to keep exploring.
I was successful in using the TickleApp on my iPad to communicate with the Bean. Loved the idea of being able to use this interface for coding and introducing the power or Arduino using Tickle.
My next step was to discover how many LED's I'd be able to include in my black hat eTextile project. The Bean labels its pins A0, A1, 0,1,2,3,4,5.
Since soldering LED's to those pins was not going to be conducive to the prototyping I needed to do, and the holes were too tiny and close together to use alligator clip, my husband suggested soldering on a breakaway header male pins to the Beans first row so I could easily use male/female jumper cables to prototype.
What a great idea that was. It also gave me some much needed soldering practice.
What a great idea that was. It also gave me some much needed soldering practice.
With my modified Bean in place I started to prototype.
I begin by skimming through the sample projects on the Bean's LEARN page and found that the Death Star project was the most accessible for me. It very closely resembled the Santa Hat project I created last year (blinking lights and a Piezo speaker playing Jingle Bells music with a tilt sensor).
I followed the instruction and wired up a Piezo speaker and one LED to the Bean, copied the sample Code into my Arduino IDE, uploaded it using Bean Loader and crossed my fingers. As soon as I moved the Bean around I got LIGHTS and SOUND! SUCCESS!
Next question -- How many LED will the BEAN support as is. I added another LED to PIN 4, modified the code. NOTHING!

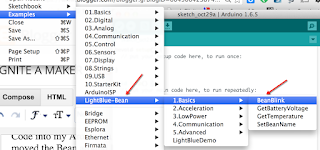

After a bit more exploring I decided to remove all variables, simplify the code by going back to the EXAMPLE BLINK CODE provided with the BEAN. Note - not the Arduino standard BLINK CODE, but the specific BEAN BLINK example.
A bit more, troubleshooting revealed that the culprit was a bad solder joint on Pin 4. Time to Step back and test all my other pins A0, A1, 0,1,2,3,4,5 and they all worked (EXCEPT 4). I'll resolder tomorrow.
But I am pleased to report that the BEAN successfully powered 7 LEDs hooked up to each of the first row of pins, and I suspect that a little solder repair will bump that up to 8 no problem.
Not bad for one little coin celled battery. Note: as recommended in the Death Star instruction I used a 10 Ohm resistor on each LED. Here's a tour of the BEAN lighting 7 LEDs using a coin cell battery.
